Gluing Machine

KUPER FLI.

Efficient veneer gluing for the most demanding requirements.

Precise veneer gluing guaranteed.
Want to join precious veneers in an extraordinarily innovative way? The KUPER FLI makes it possible for you. The KUPER FLI unites innovative technology with the highest production quality. The efficient heating system with simultaneous contact pressure, precise veneer feed and intelligent energy management make our machine the first choice for anyone working with high-quality veneer. Kuper excellent.

Work Fast.
An increase in throughput speed for processing pre-glued veneers is achieved. Easy to operate, even with gloves: The rugged operating panel shows all parameters at a glance. Reduces setup time of the machine to a minimum. No matter which veneer thickness you are using – the integrated gluing aggregate guarantees a precise glue application.

Broad Performance Spectrum.
The KUPER FLI is available in three sizes. Additional packets for processing micro and thick veneers are available for all models, allowing you to configure the machine according to your custom requirements. The integrated glue pot cooling feature extends the pot life of the glue considerably.

Industry 4.0 Ready.
With the Industry 4.0 base module option package operational and machine data of the KUPER FLI can be acquired, evaluated, visualized, stored and viewed anytime, anywhere. As a result, your future planning of applications of material, capacities and scheduling is significantly optimized. In addition, all equipped machines and systems can be proactively maintained via “Predictive Maintenance”. Thus, ensuring maximum machine availability.

KUPERPOWER for your business.

Request product Arrange consultation

Advantages at a glance

  • Maintenance-free high efficiency plastic chains prevent heat conduction and stains
  • Heating system with high efficiency and an effective heating width of only 12 mm
  • Intelligent energy management system with increased capacity and improved standby mode
  • Innovative veneer infeed device with disc gear and tolerance compensation mechanism for an offset-free infeed
  • Integrated glue application system for single side application
  • Insensitive control panel with storage function
  • Integrated compact cooling unit prolongs the glue pot life
Option

Veneer package.

Thick veneers

The KUPER FLI also processes a veneer thickness of up to approx. 5 mm due to a convenient additional equipment. The option packet contains all components required for precise processing of a veneer thickness from 1.5 mm. The infeed and the integrated glue application system particularly contribute to the user-friendly handling in this operating mode.

Micro veneer

The optionally available packet for micro veneers allows joining veneers from a thickness of 0.25 mm. Special components ensure clean processing.

Compact cooling unit

The new glue pot cooling unit ensures optimum production conditions and a long pot life. Directly integrated and without any cooling liquid. The required temperature can be adjusted via the control panel.

Clearly arranged control panel

All parameters required for machine operation can be easily set and read via the clearly arranged control panel. The set parameters can be stored.

Precise glue application system

A remarkable feature of the glue application system is the nearly horizontally arranged application disc. This allows a precise glue application and excludes glue emerging from the joint.

Precise veneer transport

The proven and patented sliding rail system allows the use of high efficiency plastic chains. These chains are completely maintenance-free and require no lubrication. Stains resulting from a combination of condensate and metal abrasion is excluded. Due to the very narrow heating zone, sensitive veneers are protected and veneer shrinking is considerably reduced.

Kuper FLI

Technical data.

Throat depth 500 / 1,000 / 1,250 mm
Veneer thickness approx. 0.4 – 2.5 mm,
optional from 0.25 mm and up to 5.0 mm*

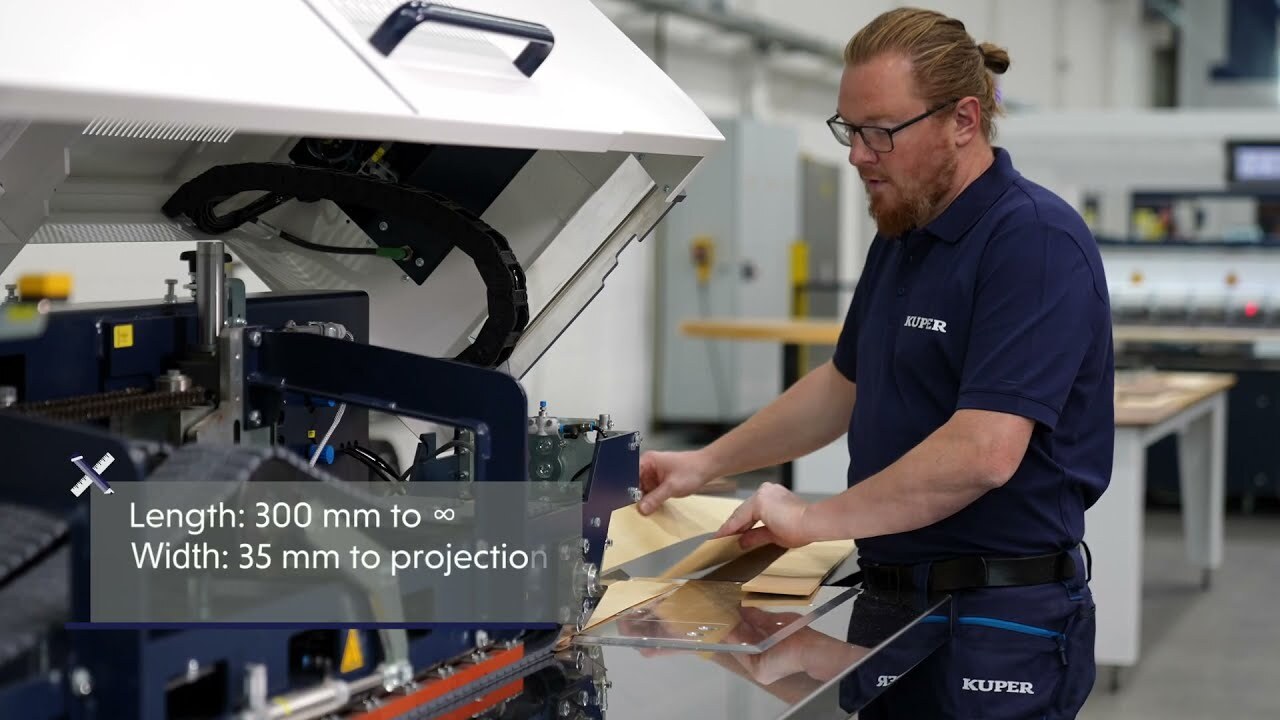

Min. Veneer length from approx. 300 mm
Min. Veneer width from approx. 35 mm
Feed speed approx. 12 – 55 m/min.
Heating zone Length: 1,425 mm
Width: 12 mm
Operating voltage 400/230 V, 3 Ph + N + PE, 50/60 Hz or special voltage
Total connected value approx. 4.1 kVA
(16 A use required)
Air consumption 5 NL/min. at 6 bar
Space requirement approx. 2,310 x 1,970 x 1,470 mm / ca. 2,310 x 2,315 x 1,470 mm
* Subject to material tests, depending on the wood type

Additional technical data upon request. Illustrations may contain options. Additional components such as control cabinets, safety facilities e.g. are maybe not shown. Subject to design modification.
