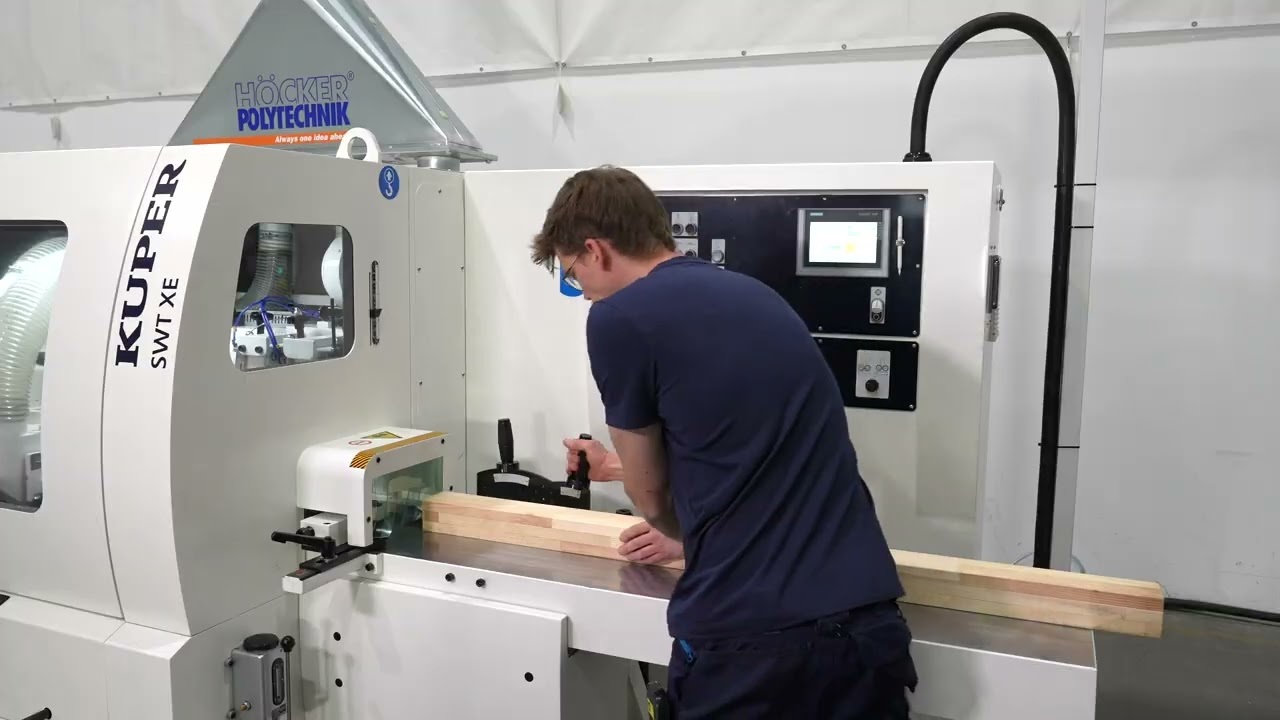

KUPER SWT XE.
Simply excellent. Simply user-friendly.
The perfect entry into the KUPER world: the KUPER SWT XE combines versatile planing and molding with exceptional precision – all at an attractive price. Our latest model has everything you need for fast and efficient four-sided planing as well as molding and profiling up to 20 mm deep. A true highlight: the KUPER K2 control system comes standard, allowing fully automatic adjustments at the push of a button. Just as practical: the proven ProLock® quick-clamping system makes tool changes easier than ever. The KUPER SWT XE – your smart upgrade for any workshop.
KUPERPOWER for your Business.
Advantages at a Glance
- Planing and profiling machine with 4 processing spindles (Bottom, Right, Left, Top)
- Extremely compact design saves space – and costs
- Feed and spindle motors: IE3 energy-saving motors
- Continuously adjustable feed speed via frequency inverter (6–24 m/min)
- Spindle speed continuously adjustable via frequency inverter between 4,000 and 6,000 rpm
- Practical ProLock® quick-clamping system
- Electric height adjustment of the feed support
- Fully automatic motorized adjustment of the left and top processing spindles (width/height)
- Hardened, premium-quality infeed and machine table
KUPER K2 Control – Clear & Simple
The K2 Basic control, exclusively developed by KUPER, ensures a quick and safe setup of your planing and molding machine.
- 7-inch SIEMENS touchscreen with clear symbols for intuitive operator guidance
- Motorized height and width adjustment, also controllable via program-independent input interface
- Program management (up to 500 programs)
- Management and monitoring of maintenance intervals with graphical display of lubrication points
- Tool management
Spindel arrangement:
SWT XE 4
Hard-chromium plated work surfaces
All table surfaces of the KUPER SWT XE are hard-chromium plated to ensure precise results. This ensures durability and guarantees precise locating surfaces.
Fast tool changing thanks to ProLock®
Required tool changes on all spindles are quick and easy due to the ProLock® clamping system.

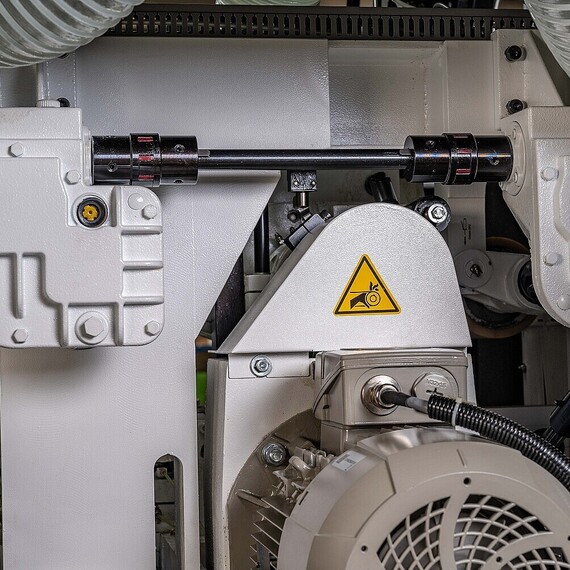

PRECISE FEED
Cardan shafts precisely synchronize the feed rollers, ensuring steadyspeed during processing.
COMPACT DESIGN
Space-saaving, stable T-beam for feed and upper spindle. Common motor for right and left machining spindle.
Technical Data:
| Working width | 15 – 230 mm |
| Working height | 10 – 125 mm |
| Feed speed | 6 – 24 m/min. |
| Axial adjustment path | Horizontal spindle 20 mm, Vertical spindle 20 mm |
| Number of spindles | 4 |
| Spindle power rating | Bottom and top: 5.5 kW each; Right and left: 5.5 kW (one motor for both spindles) |
| Spindle rotational speed (variable) | 4,000 – 6,000 rpm |
| Spindle Diameter | 40 mm |
| Tool Diameter | First lower spindle: 125 – 160 mm Vertical spindle: 112 – 180 mm Upper spindle: 112 – 200 mm Lower spindle: 112 – 200 mm |
| Profile chamfering depth | up to 20 mm |
Additional technical data upon request. Illustrations may contain options. Additional components such as control cabinets, safety facilities e.g. are maybe not shown. Subject to design modification.
