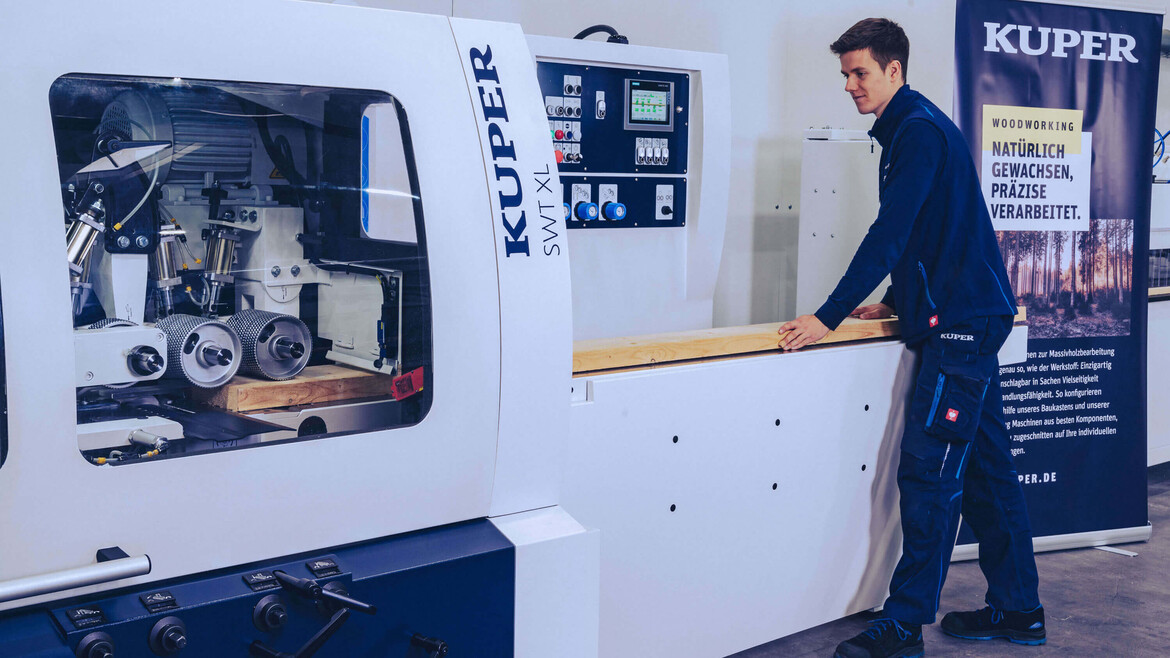

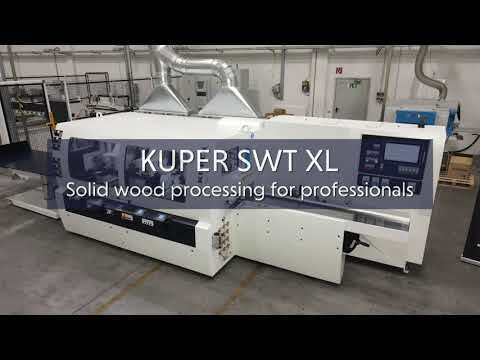

KUPER SWT XL-6.
The versatile window professional.

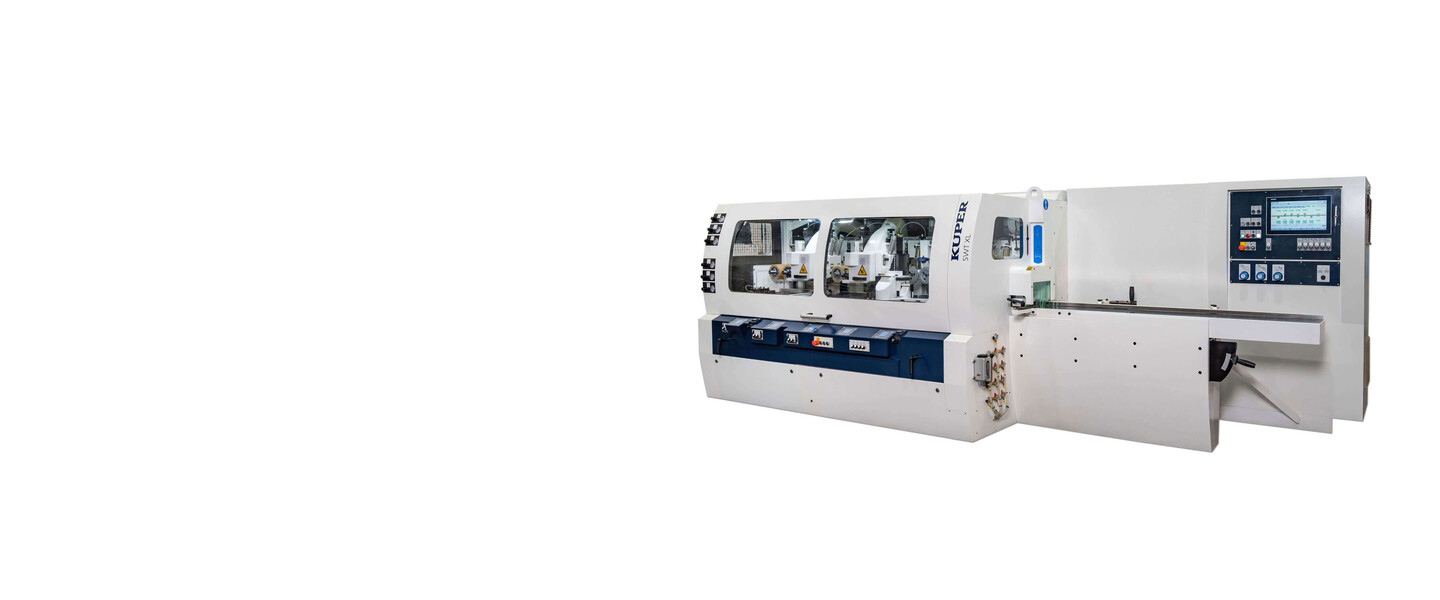

Flexible has never been so easy. The KUPER SWT XL-6 is the versatile planing and molding machine for quality-conscious window manufacturers. With only seven tools, this window professional let you produce the most important window scantlings and moldings on just one machine: Window scantlings with and without window bars, window bars with and without beading, stop bars, cover strips, Viennese sash bars and much more. No problem at all. And only one tool change required! Kuper easy with the KUPER SWT XL-6.
Thanks to its flexibility and equipment, the KUPER SWT XL-6 offers an ideal cost/benefit ratio. The window options include CNC controlled axes and dual displays, cycling pressure shoes, a retractable window bar saw and a width-controlled contact pressure straight edge behind the left spindle.
The machine and its tools are perfectly synchronized. The profiling of moldings on the KUPER SWT XL-6 occurs with clamped disc saw and delivers top quality results. The variable width production of window bars runs without time-consuming adjustments. And the surface finish is achieved by means of higher cutting speeds with 8,000 revolutions per minute.
For special requirements the XL series can be equipped with up to ten spindles. Special aggregates can be combined with them, such as universal spindles, sawing units, window bar saws, T-groove units or pivoting spindles. This permits us to respond to almost every specification.
The KUPER SWT XL-6 – the window professional for window professionals.
KUPERPOWER for your business.
Advantages at a glance
- Practical quick-action lock system ProLock®
- Hard-chromium plated infeed and machine tables
- Pneumatically damped pressure shoe downstream of the top shaft, improved dynamics due to linear guides
- Continuous feed, power transmission via several worm drives and cardan joints
- Two driven double mounted infeed and outfeed rollers in the machine table
- Infinitely variable feed speed control via frequency converter, flexible adjustment by potentiometer
- Electrical height adjustment of the feeding device carrier
- Electronic start/stop system for all spindle motors

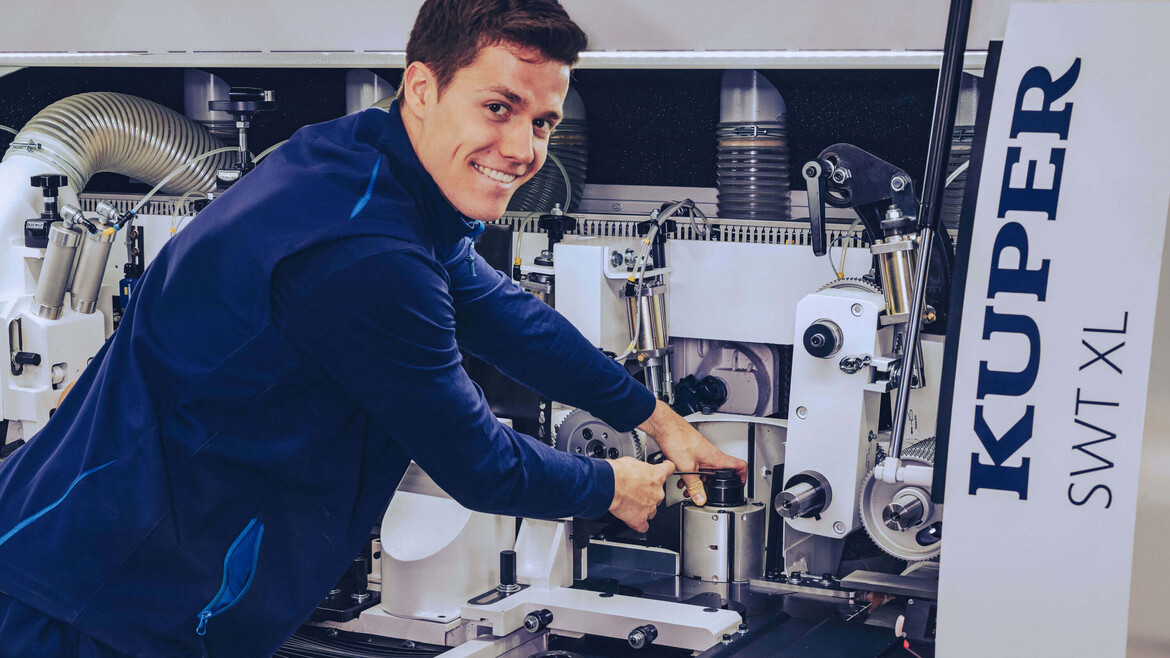

- Swivel mounted feed cartridge in front of the right-hand spindle for easy tool changing
- Axial adjustment of the vertical spindle 60 mm
- Lubricant pump for table lubrication
The KUPER K² control system.

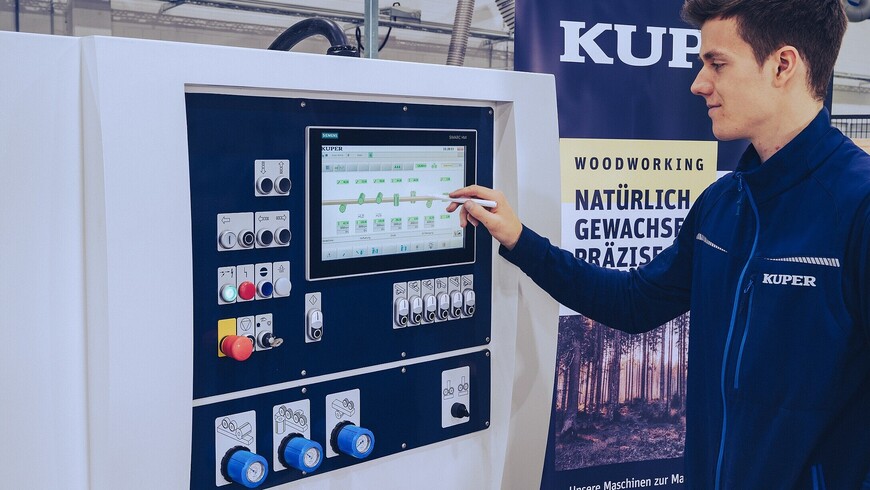

For every application the appropriate control system: the KUPER K² control systems are available on three levels: „Basic“, „Professional“ and in the High-End-Version „Advanced“. The self-explaining icons on the Siemens touch panel guarantee an easy and comfortable handling.
Simple four-sided operation up to a server based management, all these processes are feasible with the Siemens control system. All these different control systems allow a detailed monitoring of the machine at any time. If necessary, mechanical adjustments or required tool changes are indicated.
The KUPER SWT XL-6 can operate with up to ten spindles in virtually any configuration. The special units such as the universal spindle, saw unit, saw for window bars and the T-groove unit can be flexibly combined with the basic configuration as required.
|Working width||15 – 230 mm||10 – 350 mm|
|Working height||15 – 150 mm||5 – 230 mm|
|Feed speed||6 – 24 m/min.||2 – 60 m/min.|
|Axial adjustment path||horizonatl spindle 20 mm|
vertical spindle 60 mm
|horizontal spindle bis 60 mm|
vertical spindle 80 mm
|Spindle arrangement||1 – 10 spindles||1 – 10 spindles|
|Universal spindle||7.5 kW||bis 11 kW|
|Saw spindle||11 kW||bis 30 kW|
|Spindle rotational speed (variable)||4,000 - 6,000 U/min.||2,000 – 9,000 U/min.|
|Spindle diameter||112 – 200 mm|
(first bottom spindle 125 – 160 mm)
|bottom up to 250 mm|
|Profile-groove depth||up to 20 mm (bottom 14 mm)||up to 35 mm|
Additional technical data upon request. Illustrations may contain options. Additional components such as control cabinets, safety facilities e.g. are maybe not shown. Subject to design modification.
